Al Rai Produce its own cladding sheets

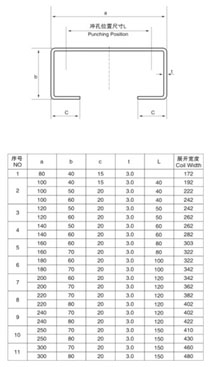

1. C Purlin (or Purline) is a horizontal structural member in a roof, Purlins support the loads from the roof deck or sheathing and are supported by the principal rafters and/or the building walls, steel beams etc.
- Dimensions: according to the table on the right
- Punching: according to the customer requirements
- Production Capacity: 20 meters per minuet
- Thickness: 1.7mm to 4mm
- Length: free
|
|
 |
| |
 |
|
| |
|
|
|
| |
2. Z Purlin (or Purline) is a horizontal structural member in a roof. Purlins support the loads from the roof deck or sheathing and are supported by the principal rafters and/or the building walls, steel beams etc
- Dimensions: according to the table on the right
- Thickness: 1.7mm to 4mm
- Production Capacity: 20 meters per minuet
- Punching: according to the customer requirements
- Lengths: Free
|
|
 |
| |
 |
|
| |
|
|
|
| |
3. Other Accessories: Foam Stoppers: Polyethylene foam profiles to be inserted to the eaves, ends, and ridges of the cladding sheets to add more insulation and protect the building from weather elements and bird's nests |
| |
|
|
|
| |
 |
| |
|
|
|
| |
4. Corrugated Cladding sheets: we produce our own cladding materials by cold roll forming machines, our unique section shown on the right has a special inertia resistance that allow workers to walk freely on the roofs, also will have more strength than standards sections available In the markets. |
| |
|
|
|
| |
- Width of the coil: 1.250mm
- Width of the formed sheet: 1,000mm
- Thickness: 0.4mm to 0.7mm
- Production Capacity: 20 meters per minuet
|
|
- Steel Types: PPGI or Painted plate
- Finishes: DFT, PE, Granite, Extra Shine
- Colors: RAL Guide available
- Lengths: Free
|
| |
|
|
|
| |
 |
| |
 |
| |
|
|
|
| |
5. Cladding Screws: We also supply all types of cladding screws, pin head, self tapping or self drilling screws, all required lengths, Galvanized, metallic plating or Darcomat finishes, Hex heads with plastic caps or pre-painted heads. |
| |
|
|
|
| |
 |
| |
|
|
|
| |
6. Butyl Tape: Butyl and Bitumen tapes go between overlaid steel sheets to insure insulation and prevent water leakage; also these tapes are used in rain gutters and roof openings including roof vents, butyl tapes could be supplied in any thickness or dimensions according to the end use. Modified butyl could stand up to 160Co to insure the perfect resistance of direct sun heat. |
| |
|
|
|
| |
 |
